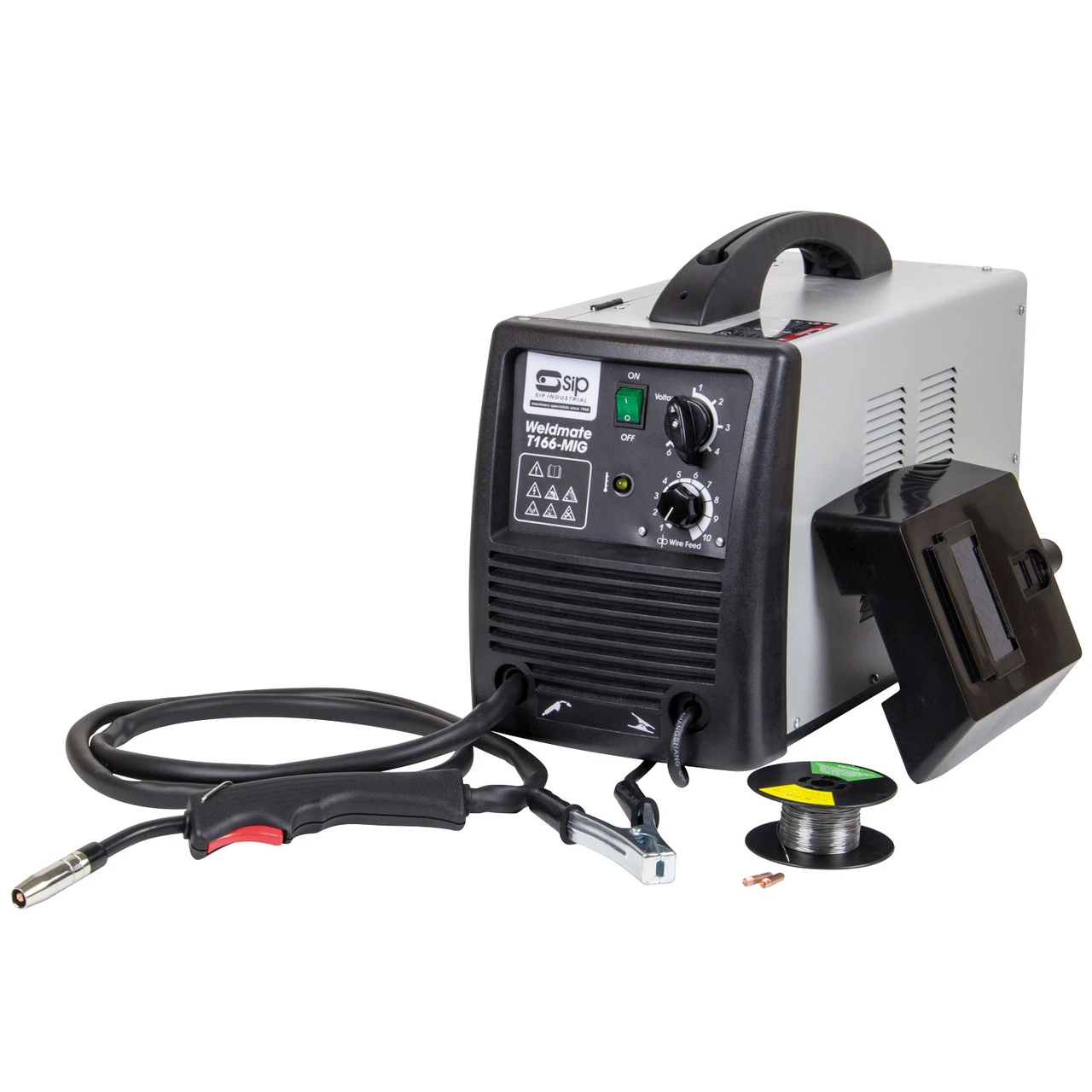

SIP Weldmate T166 Mig (Gas/Gasless)

The SIP T166-MIG Gas/Gasless Transformer Welder offers effortlessly portability through a lightweight design, ease-of-use and convenience at a value-for-money price, designed specifically for powerful performance for home and trade welding.

• 30A to 105A output current; 165A peak output current
• Ø 0.6mm to 0.8mm flux-cored wire; 0.7kg to 5kg spools
• Lightweight and compact design for simple portability
• Robust metal casing for durability in all applications
• Supplied with torch and a range of other accessories
• Ready-to-use in gasless mode for immediate operation!
• 4 powerful output power settings for versatility
• Thermal overload protection for added safety

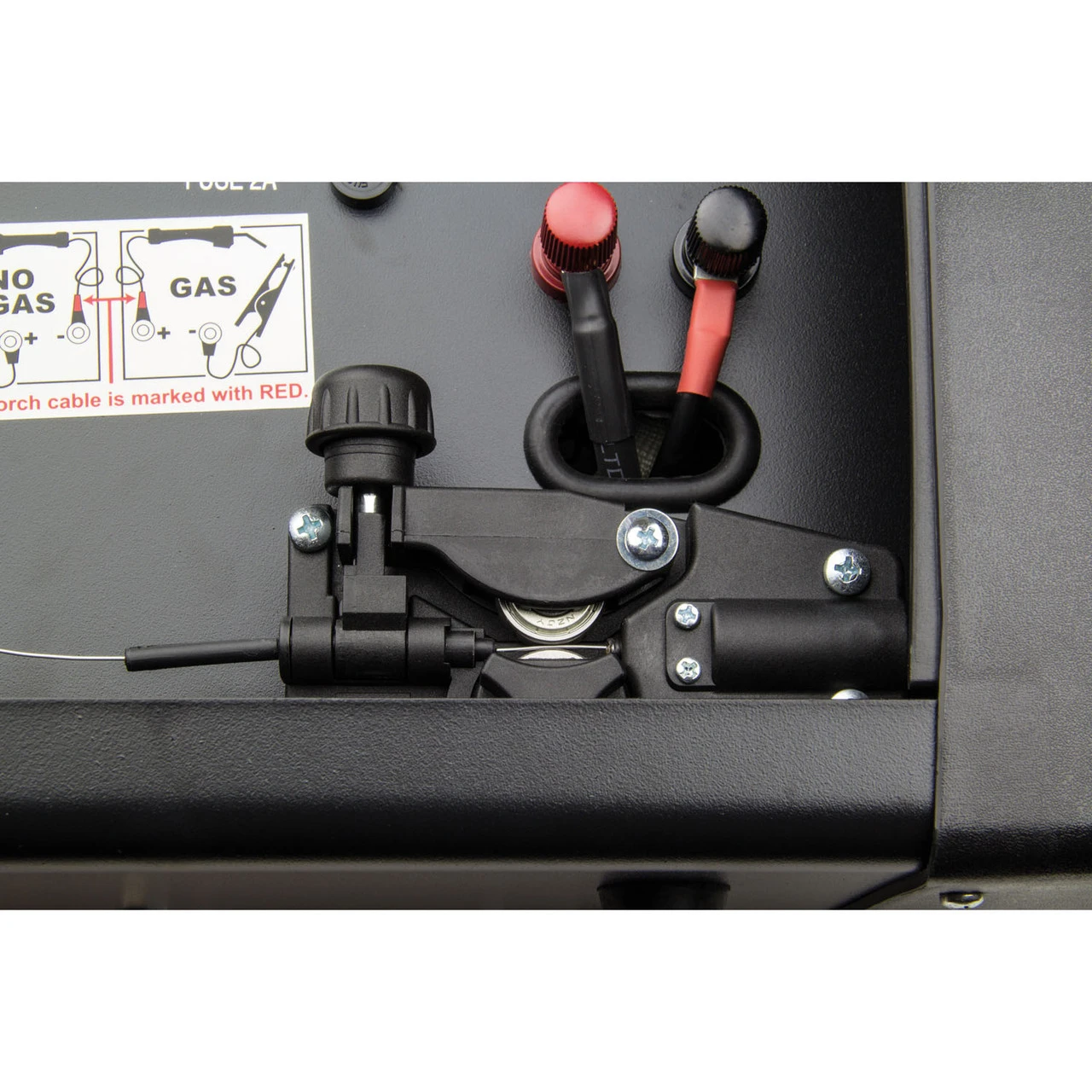

• Versatile adjustable wire feed mechanism
• Turbo fan-cooled for higher performance
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 05756
• Input Supply: 230v (16A)
• Output Current: 30A – 165A
• Output Voltage: 15.5v – 19.25v
• Output Settings: 6 settings
• Duty Cycle: 105A @ 20%
• Wire Diameter: Ø 0.6mm – 0.8mm
• Wire Spool Size: 0.7kg – 5kg
• Max. Wire Speed: 16mtr/min
• Welding Thickness: 0.7mm – 6.2mm
• Open Circuit Voltage: DC 32v
• Protection Level: IP21S
• Insulation Class: Class H
