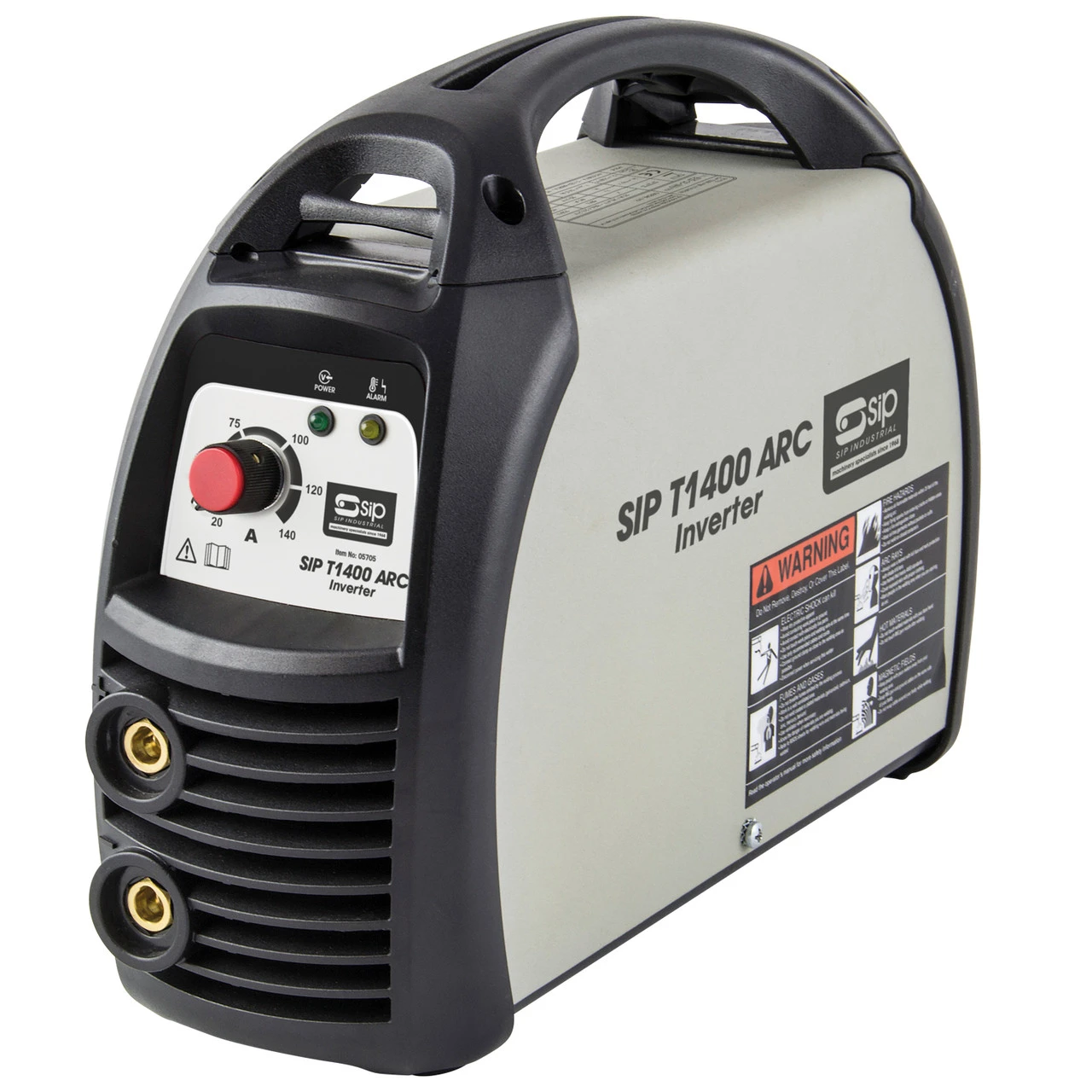

SIP T1400 Arc Inverter Welder 230v

The SIP T1400 ARC/TIG Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

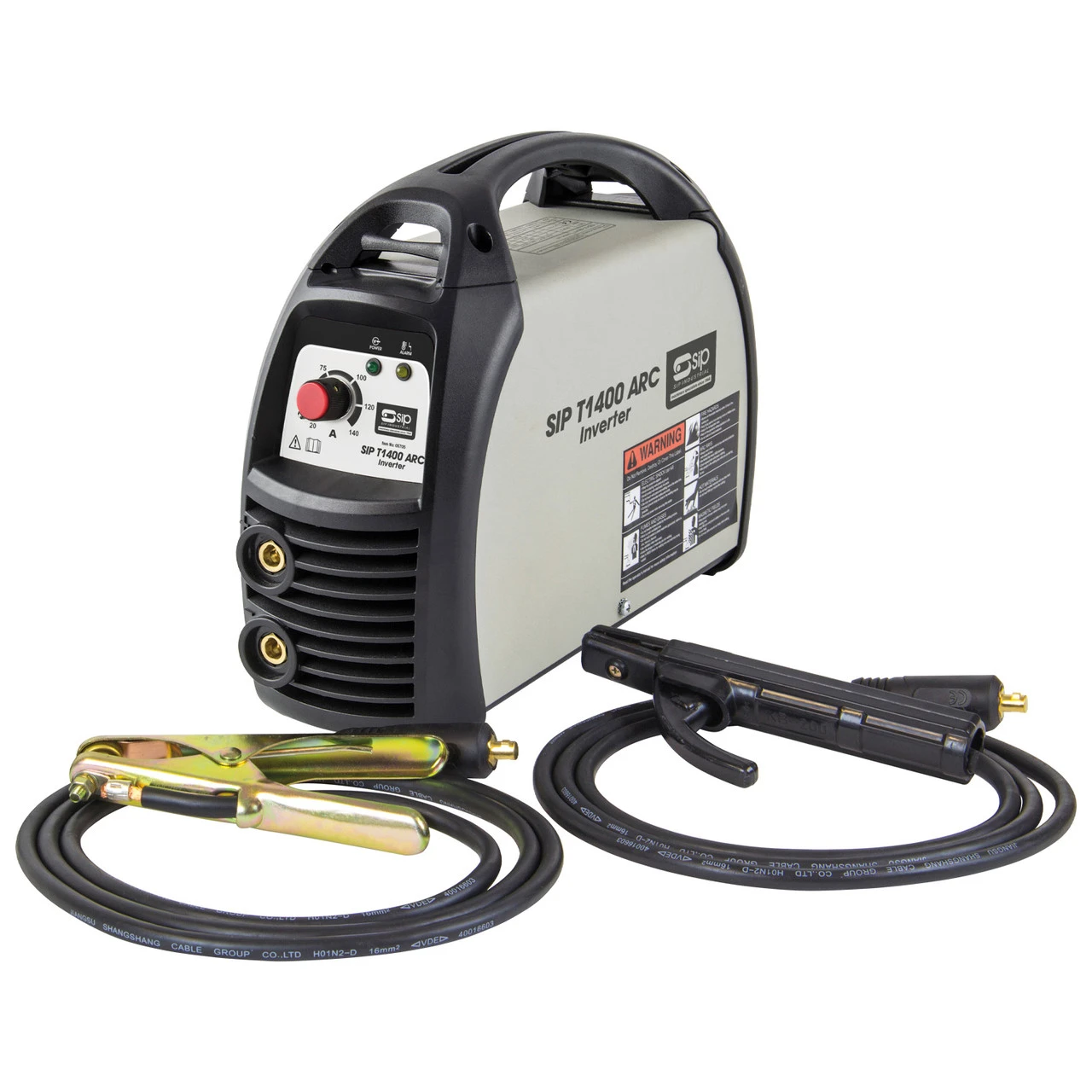

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.

• Ø 1.6mm to Ø 3.2mm electrode diameter
• 20A to 140A output current; 140A @ 20% duty cycle
• Lightweight and compact design for simple portability
• Scratch-TIG start function and anti-stick circuitry
• On-demand cooling for longer runtimes and performance
• Generator-friendly for suitability in all environments
• Thermal overload protection for added safety
• Equipped with high-quality dinse sockets
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 05705
• Input Supply: 230v (13A)
• Output Current: 20A – 140A
• Output Voltage: 20.8v – 25.6v
• Duty Cycle: 140A @ 20% / 81A @ 60% / 63A @ 100%
• Electrode Diameter: Ø 1.6mm – 3.2mm
• Welding Thickness: 1.5mm – 7mm
• Open Circuit Voltage: 68v
• Power Factor: 0.65
• Efficiency Level: 85%
• Protection Level: IP21S
• Insulation Class: Class H
