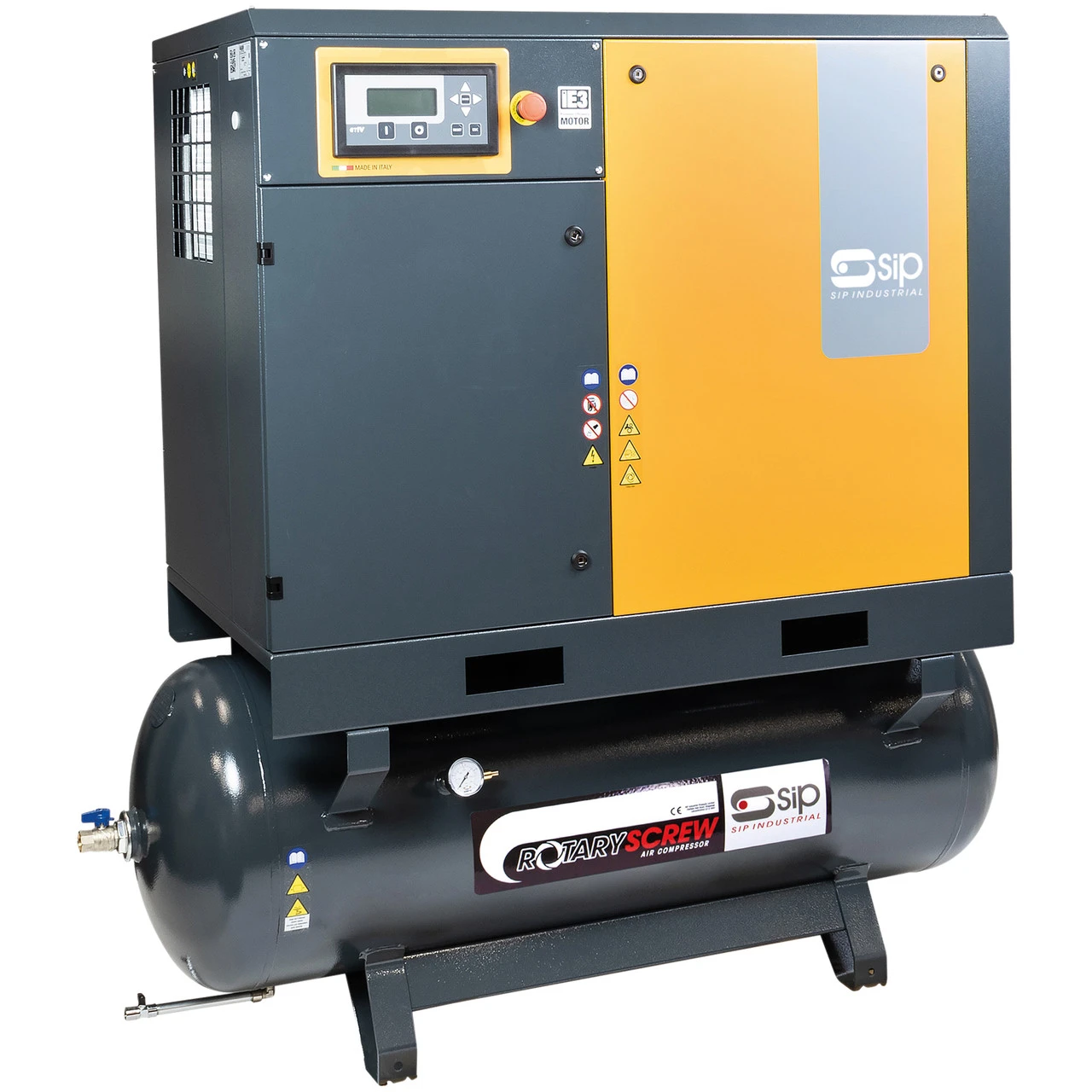

SIP RS7.5-10-270BD/FF Rotary Screw Compressor

The SIP RS7.5-10-270BD/FF 270ltr Rotary Screw Compressor is a fully integrated workstation complete with air treatment module that includes a generously-sized refrigeration dryer with a 3°C dew point, 10µm inlet filtration and 1µm outlet filtration.

Acting as an all-in-one system, this compressor has a compact and modern design that houses the air end, dryer, filters, controller and receiver in a single modular unit, providing high-quality compressed air production in a space-saving solution.

Unlike other screw compressors on the market, the integrated air system provides dry and clean air to a quality standard classification 2-4-2 in accordance with ISO 8573-1.

This compressor is designed for continuous use in demanding applications.

Each RS7.5-10-270BD/FF is built to the highest standard in Italy, and then tested by experienced SIP technicians in the UK prior to dispatch for added peace-of-mind.

• Fully automatic, integrated, and self-monitoring
• All-in-one system with compact and modern design for easy servicing access

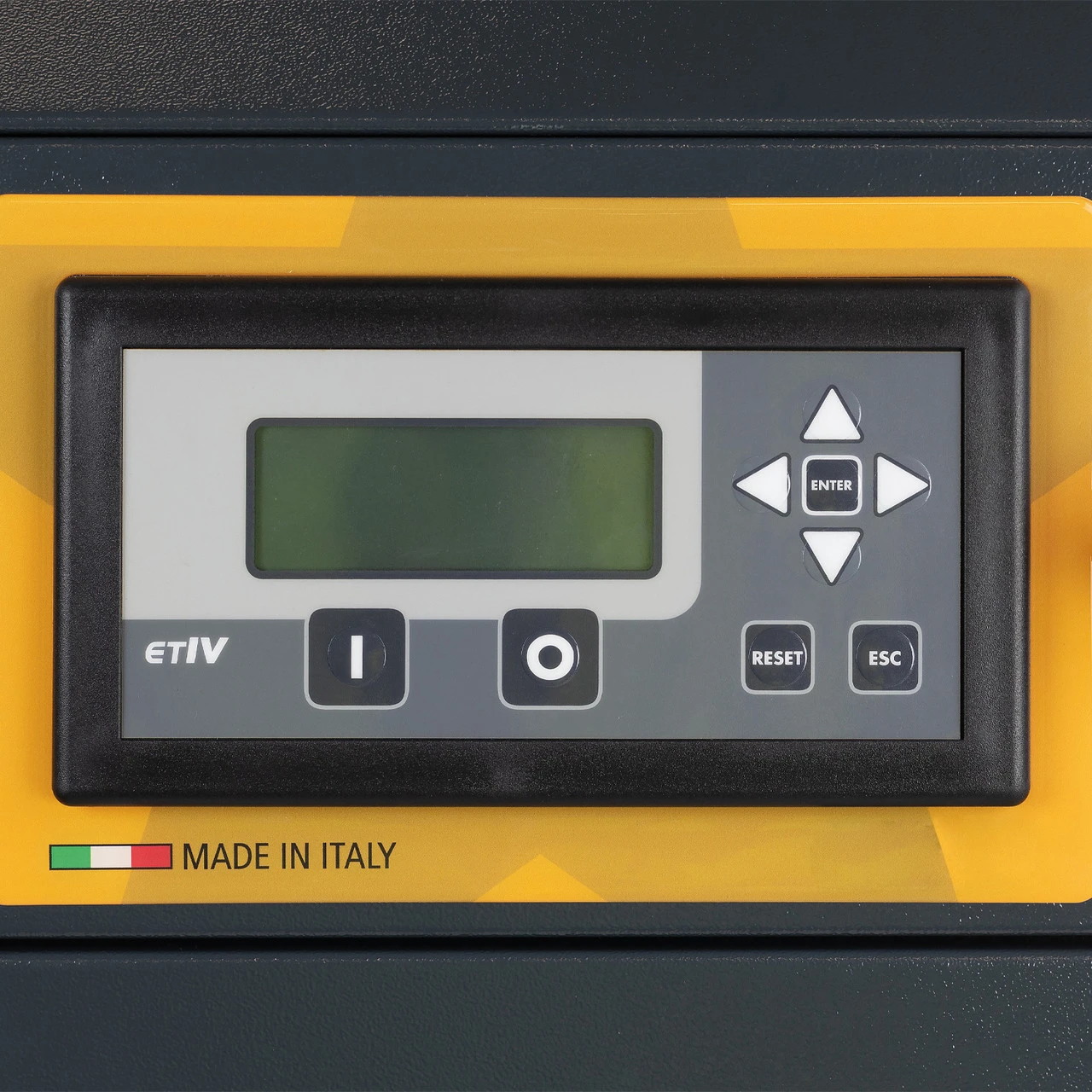

• Easy-to-use and reliable electronic ETIV controller with digital display

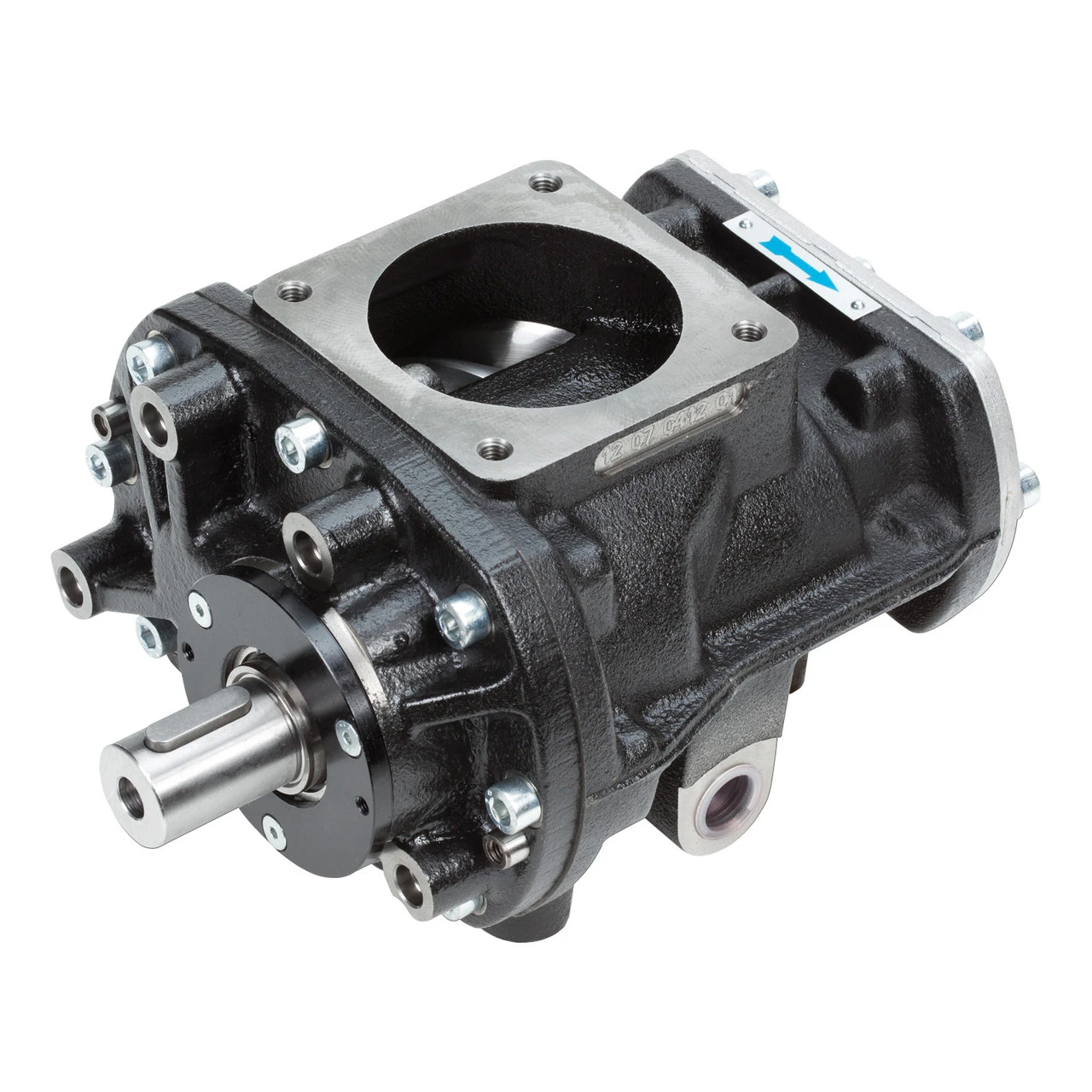

• Italian-manufactured FS26 TF air end delivers high-quality constant airflow
• Integrated air system provides both dry and clean air to quality standard classification 2-4-2, in accordance with ISO 8573-1
• Air end, dryer, filters, controller, and receiver are in a single modular unit, providing a comprehensive space-saving solution

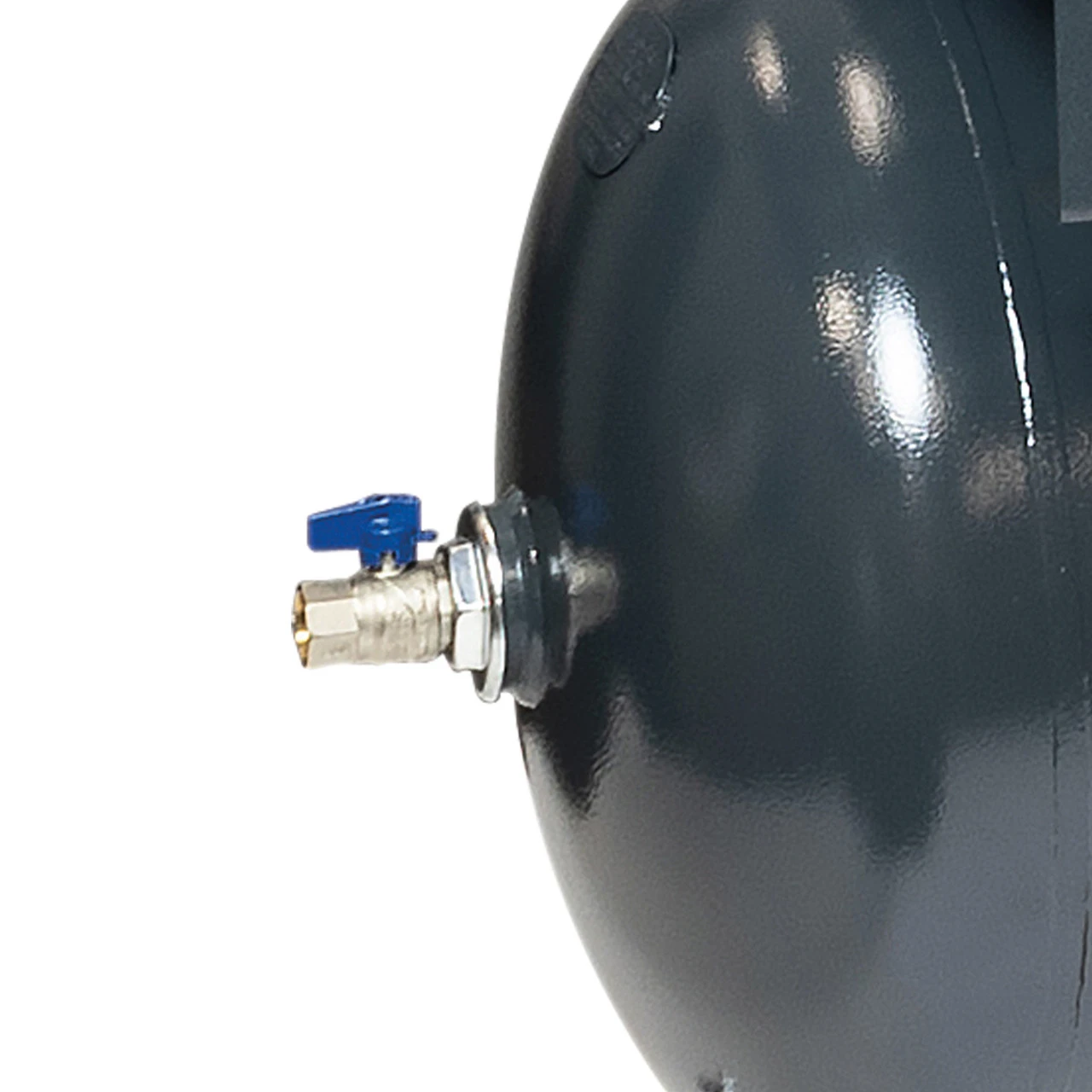

• Dry tank technology for constant airflow and reduced corrosion
• Automatic condensate discharge and status via electronic panel

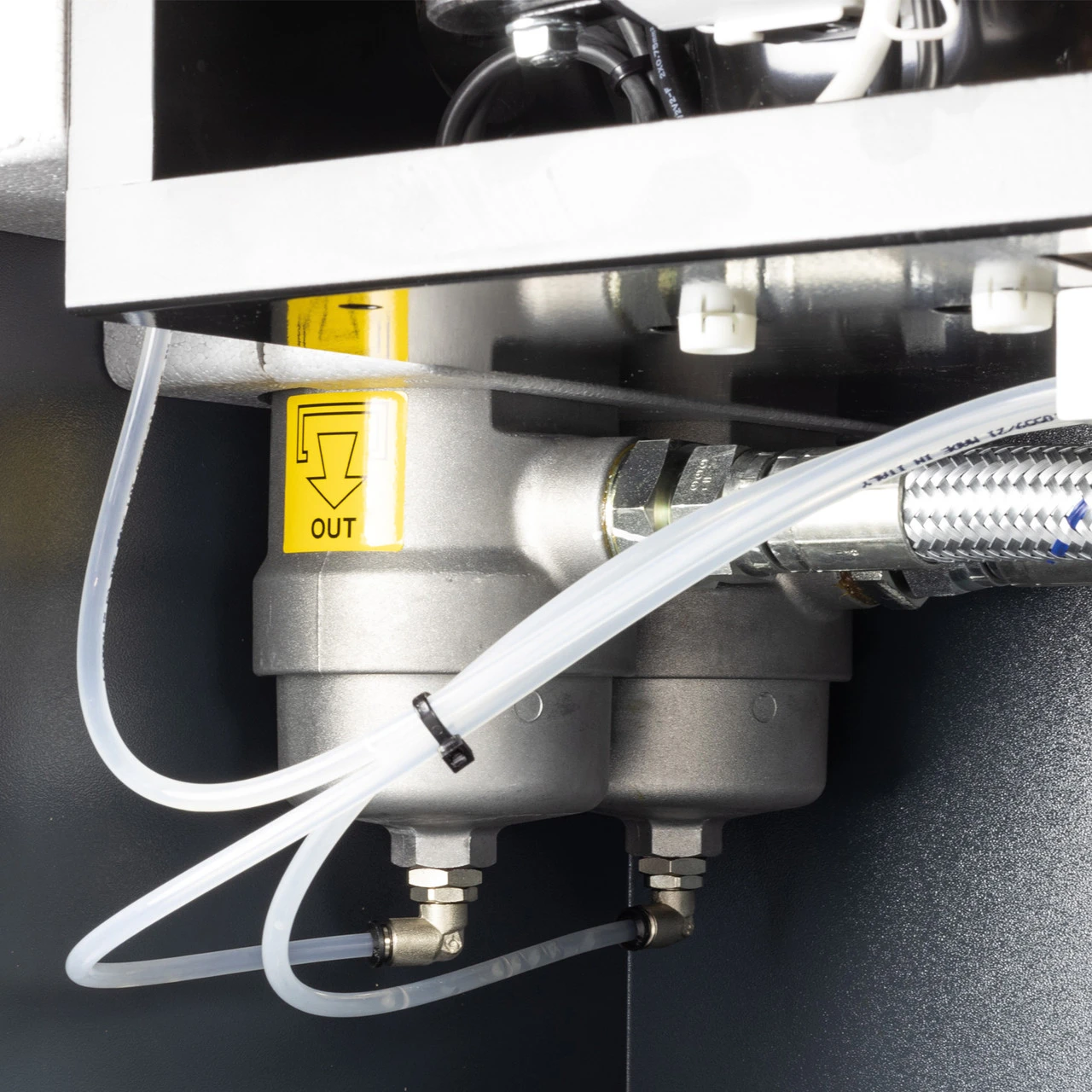

• 10µm inlet filtration and 1µm outlet filtration
• 100% UK tested by SIP before dispatch
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. 06533
• Input Supply: 400v (32A) 3-PHASE
• Motor Power: 7.5kW (10hp)
• Receiver Size: 270ltr
• Free Air Delivery (FAD): 35.30CFM (999ltr/min)
• Max. Air Pressure: 145psi (10bar)
• Filtration Level: 10µm particulate / 1µm oil filter
• Refrigeration Dryer: 3°C Dew Point
• Air Quality Level: 2-4-2 (ISO 8573-1*)
• Noise Level: 62dB(A)
