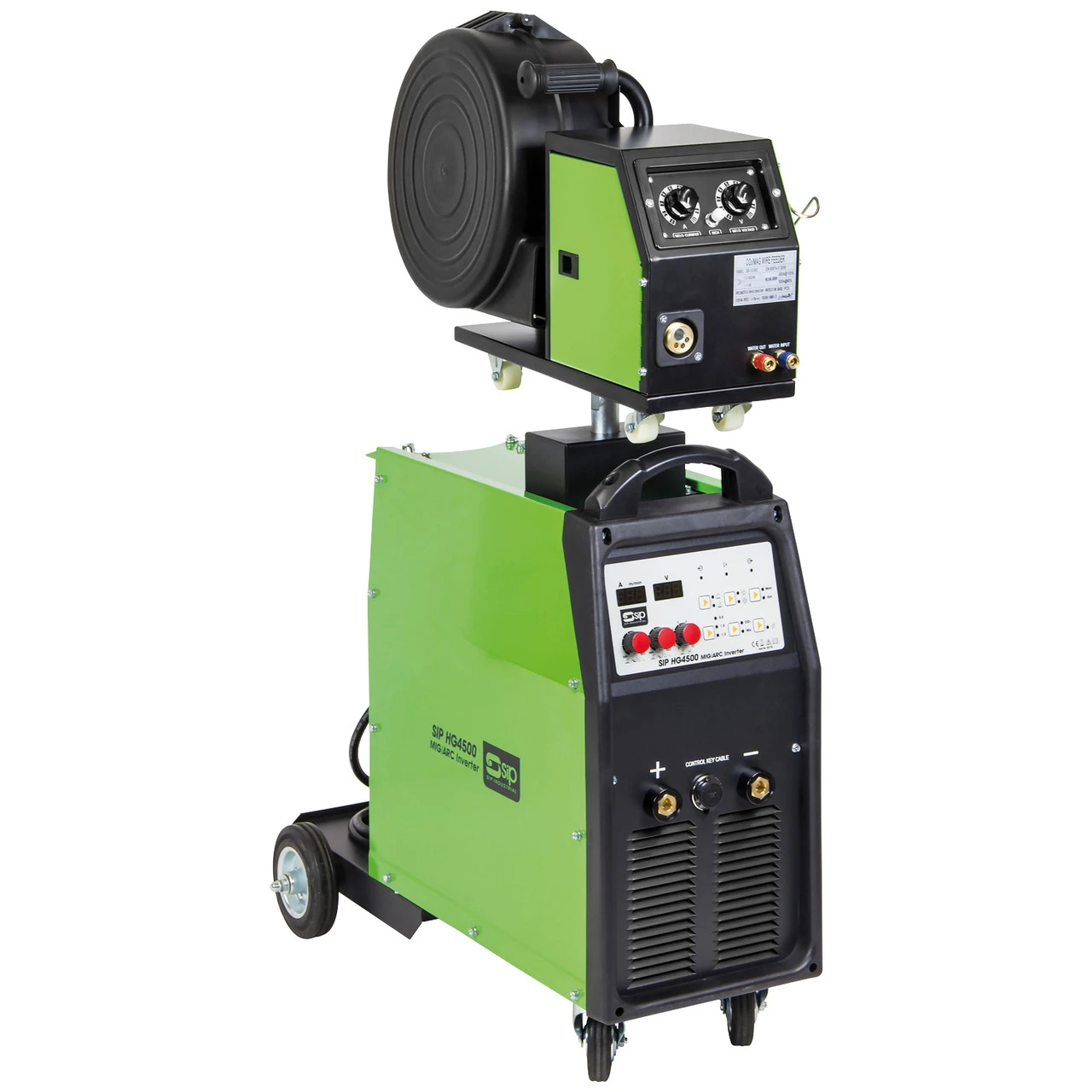

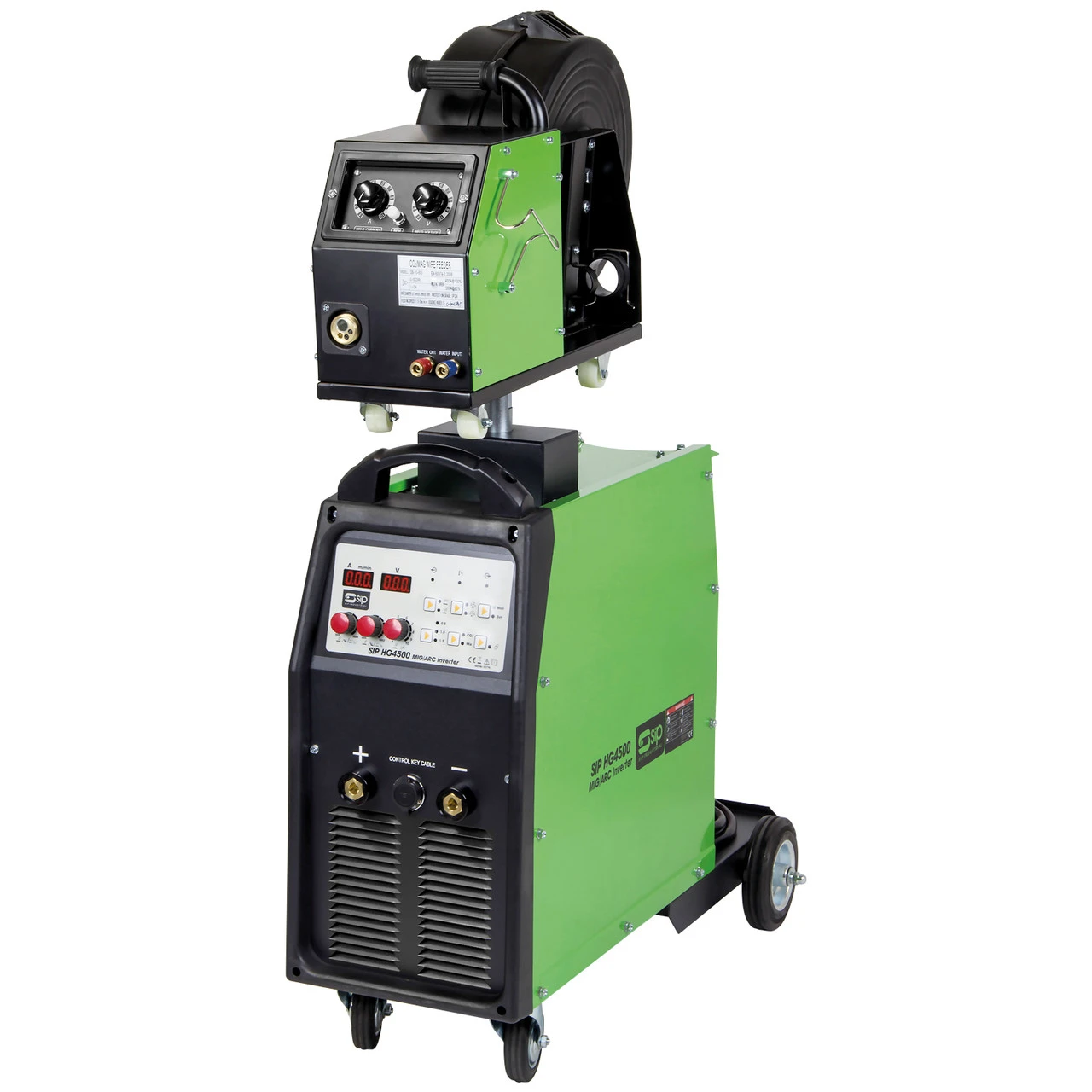

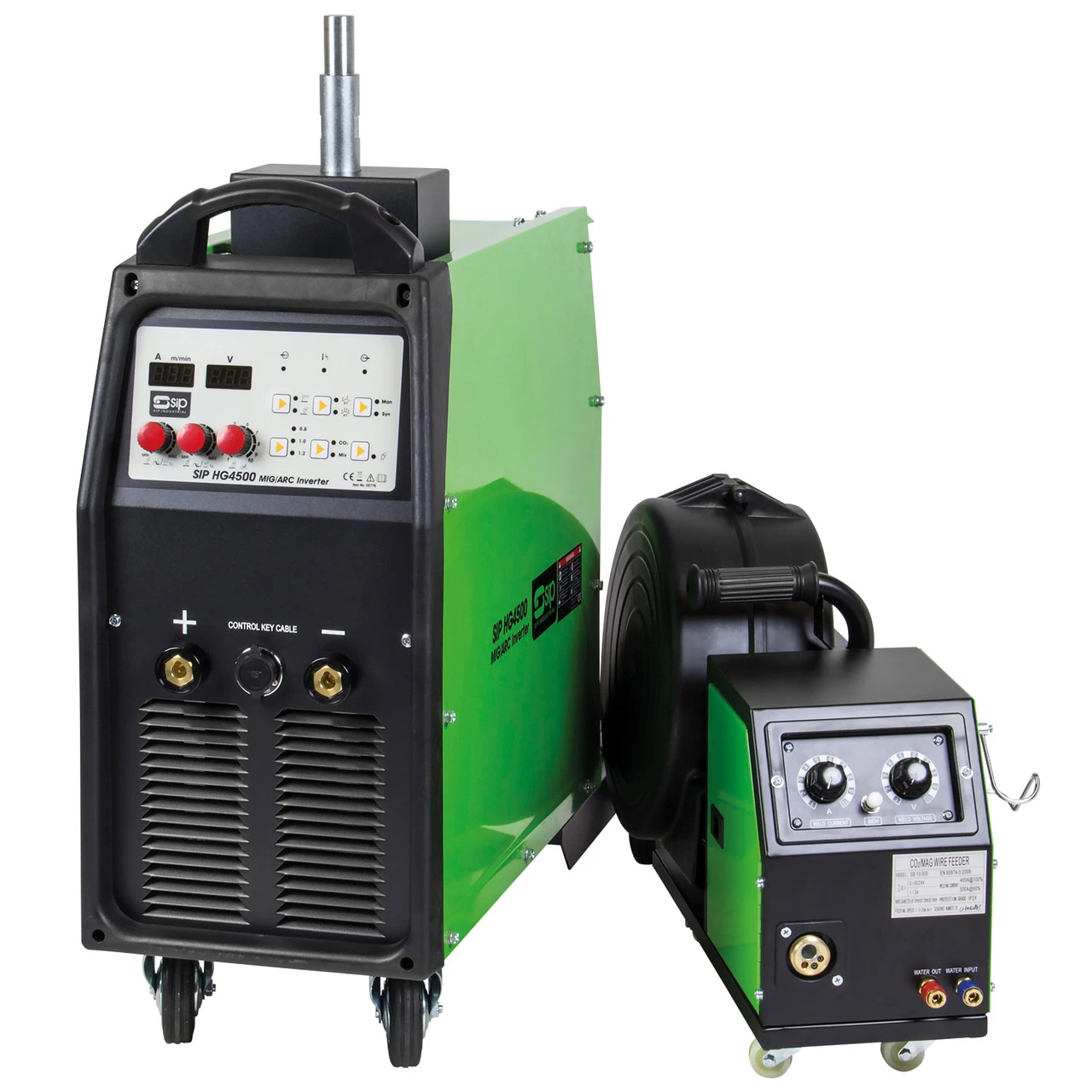

SIP HG4500 MIG/ARC Synergic Inverter Welder

The SIP HG4500 MIG Inverter Welder with Separate Wire Feed is an industrial-grade unit perfect for a wide array of applications in trade, professional and industry environments, utilising heavy-duty components ideal for demanding performance.

Comes with 4mtr MB36 torch, 3mtr Earth lead, 5mtr interconnecting harness, 1x set 0.8/1mm feed rools, 1x set 1.2/1.6mm feed rolls and 1.2mm contact tip.

• 40A to 350A (MIG) / 30A to 350A ARC output current
• 350A @ 60% duty cycle; longer weld time than other brands

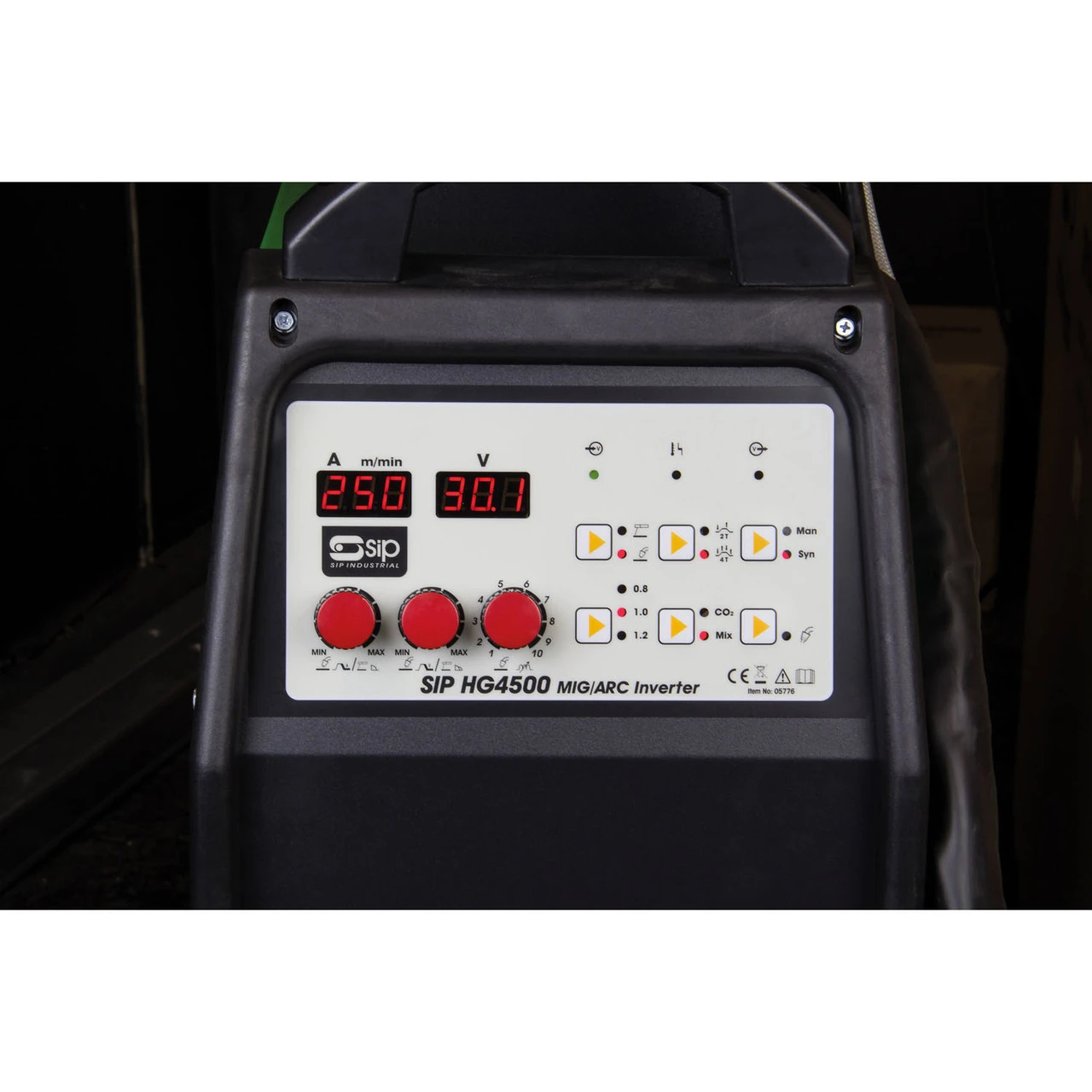

• Integrated control panel with high-quality digital display

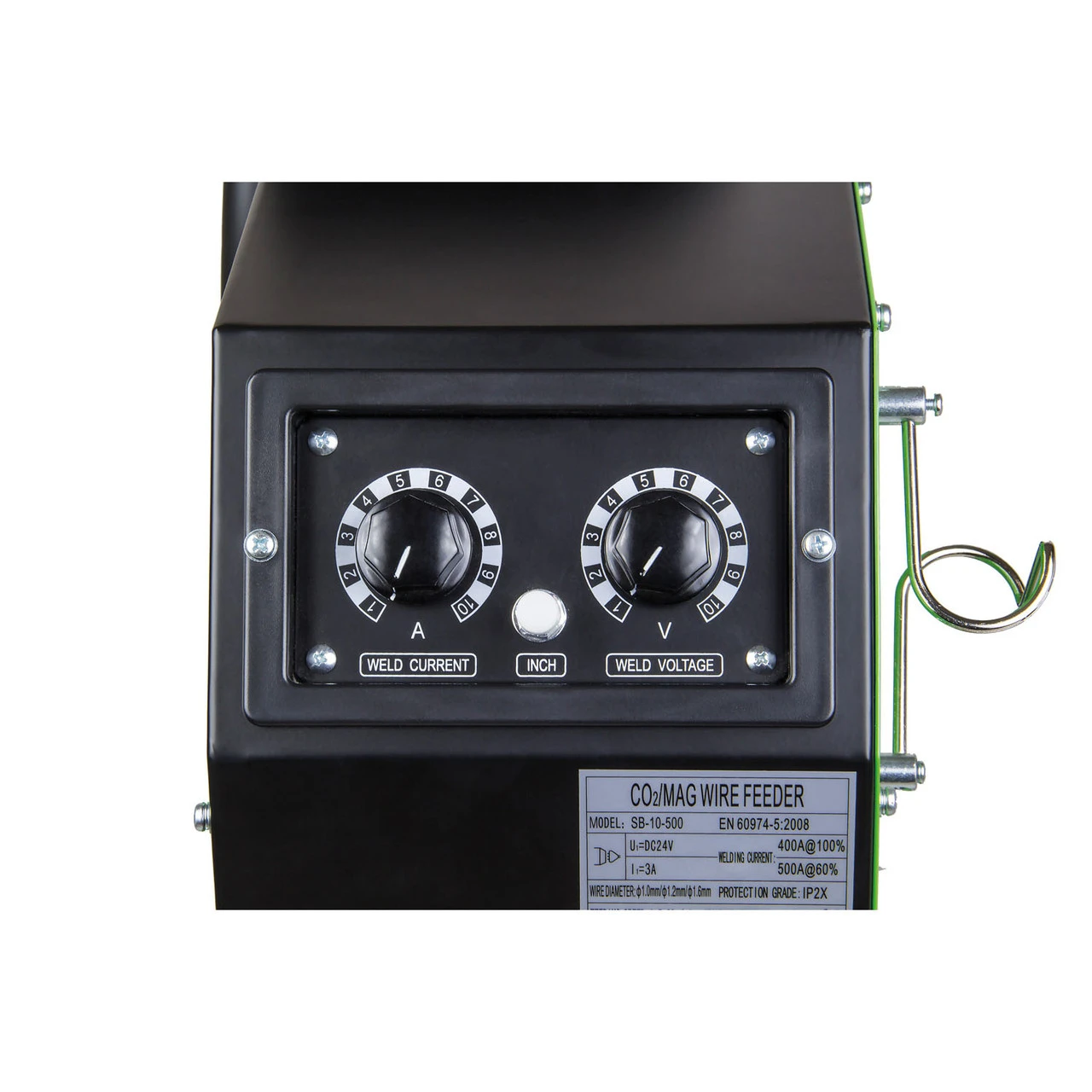

• Separate wire feed mounted on top of the main welder body
• Infinitely variable power output settings for versatility
• Comes with interconnecting harness, torch and accessories
• Wheel and castor-mounted design for easy manoeuvrability

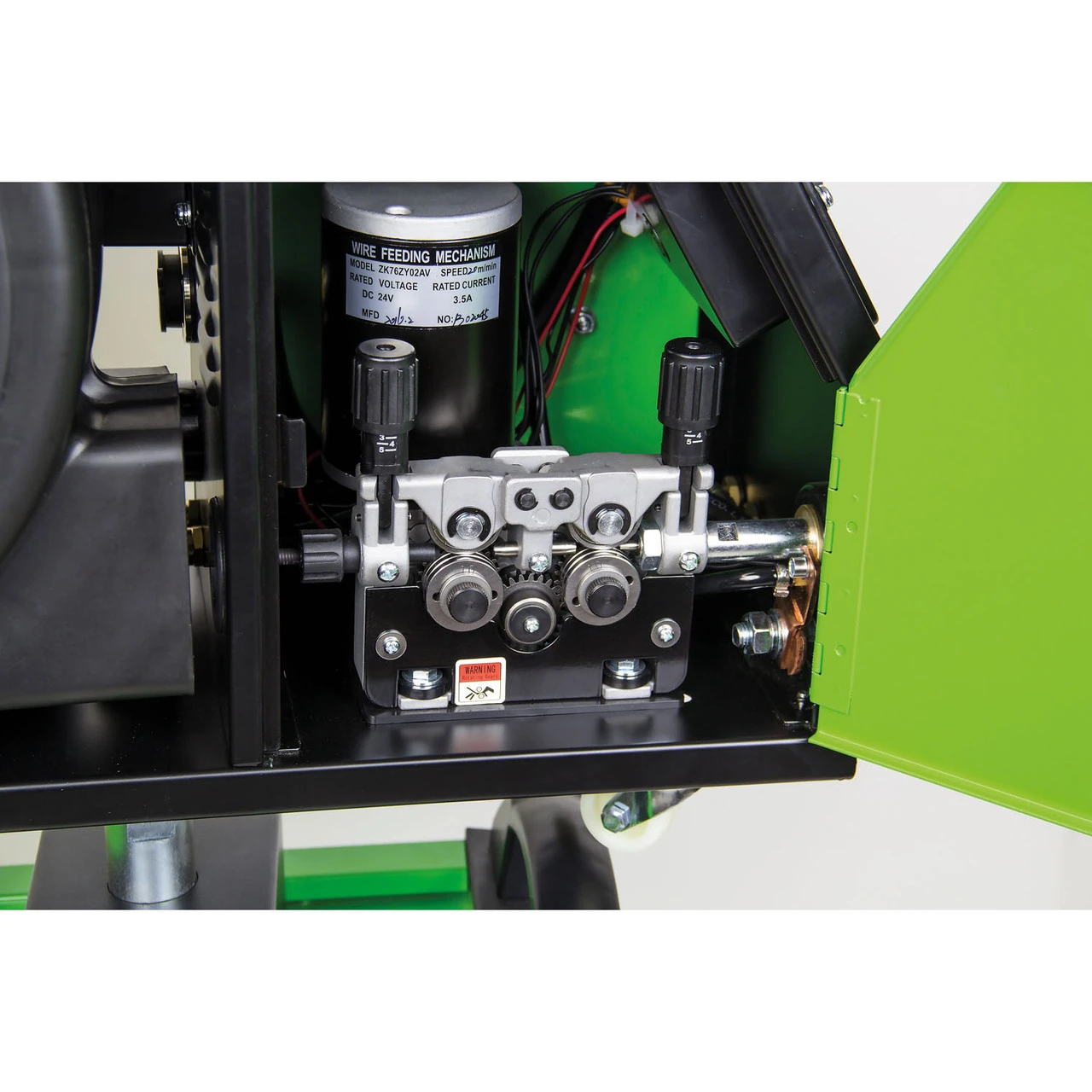

• Heavy-duty all-metal 4-roll wire feed mechanism
• Latest IGBT inverter technology platform
• Built-in 2 touch / 4 touch controls
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 05776
• Input Supply: 400v (20A)
• Output Current: 40A – 350A (MIG) / 30A – 350A (ARC)
• Output Voltage: 16v – 31.5v (MIG) / 21.6v – 34v (ARC)
• Voltage Steps: Infinitely variable
• Duty Cycle: 350A @ 60% (MIG) / 350A @ 60% (ARC)
• Electrode Diameter: Ø 1.6mm – 6mm
• Wire Diameter: Ø 0.8mm – 1.6mm
• Wire Spool Size: 5kg – 15kg
• Protection Level: IP21S
• Insulation Class: Class H
