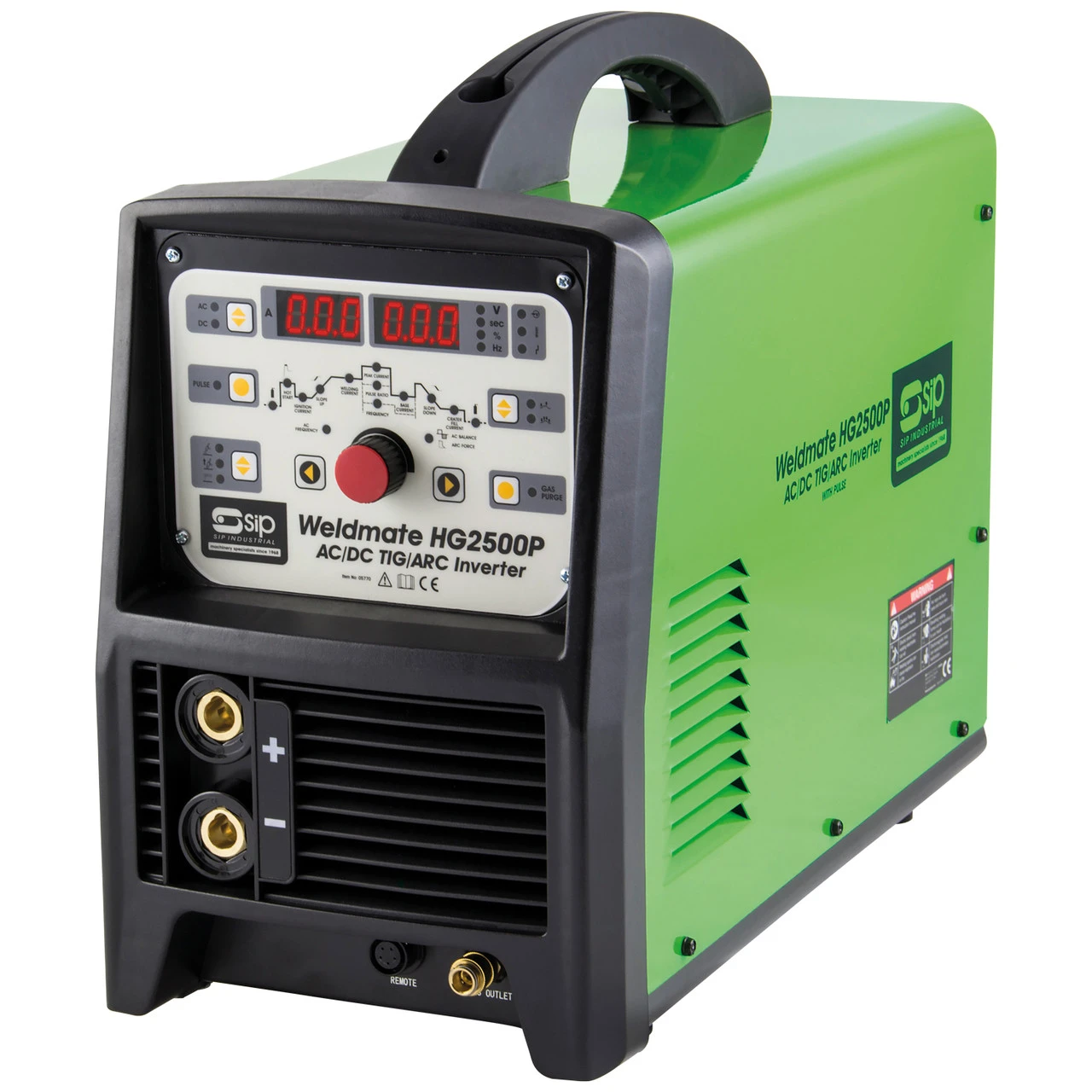

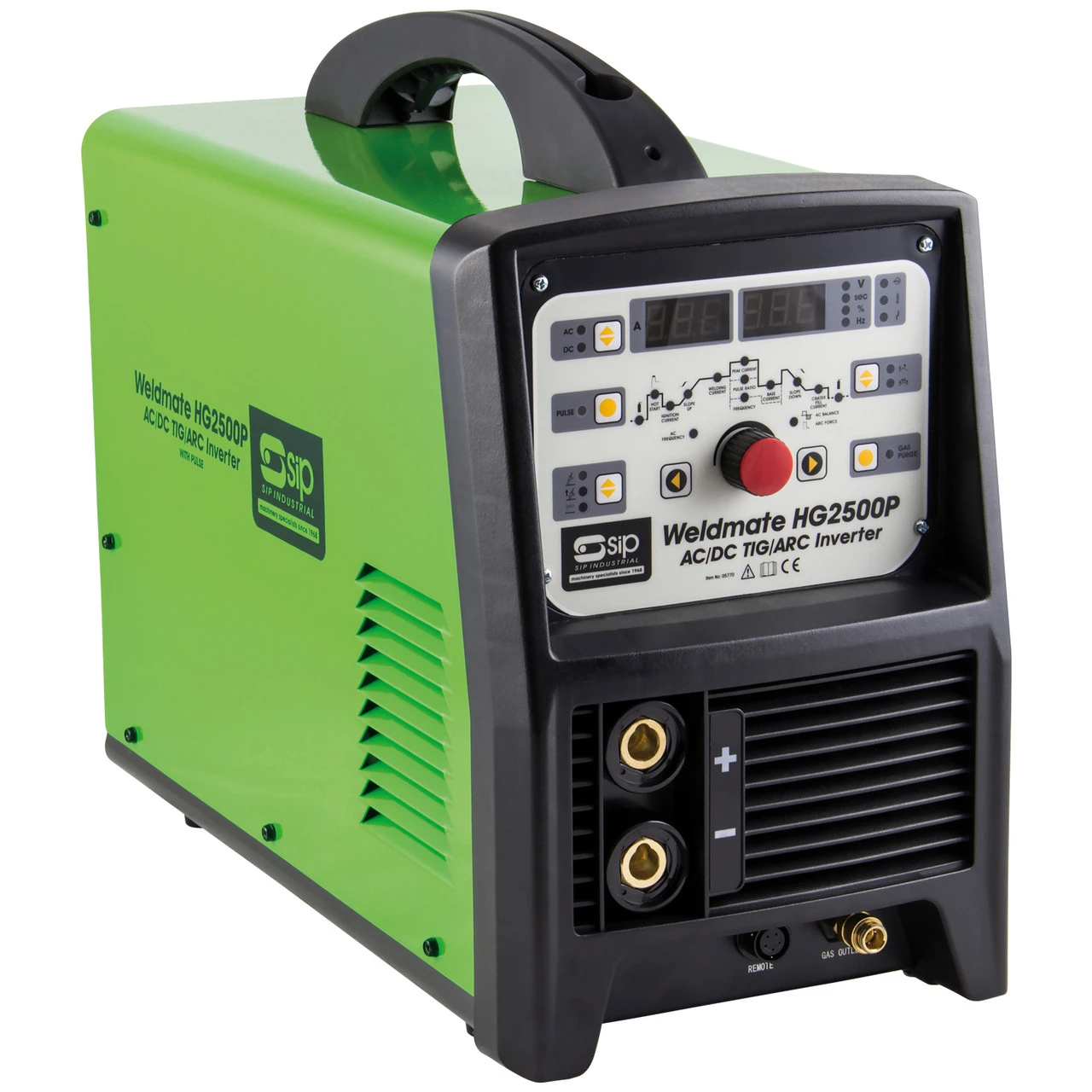

SIP HG2500P WELDER

The SIP HG2500P AC/DC TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed with a TIG Pulse facility which provides easier precision welding across a variety of applications and a 9-stage parameter adjustment program.

• Ø 1.6mm to Ø 4mm electrode diameter
• AC and DC output currents and high duty cycles
• Designed with the latest IGBT inverter technology platform
• Multi-functional; HF TIG, Lift ARC & TIG, and MMA/ARC processes
• Extremely versatile performance, welding most metals including aluminium!
• Integrated TIG Pulse facility provides considerably easier precision welds

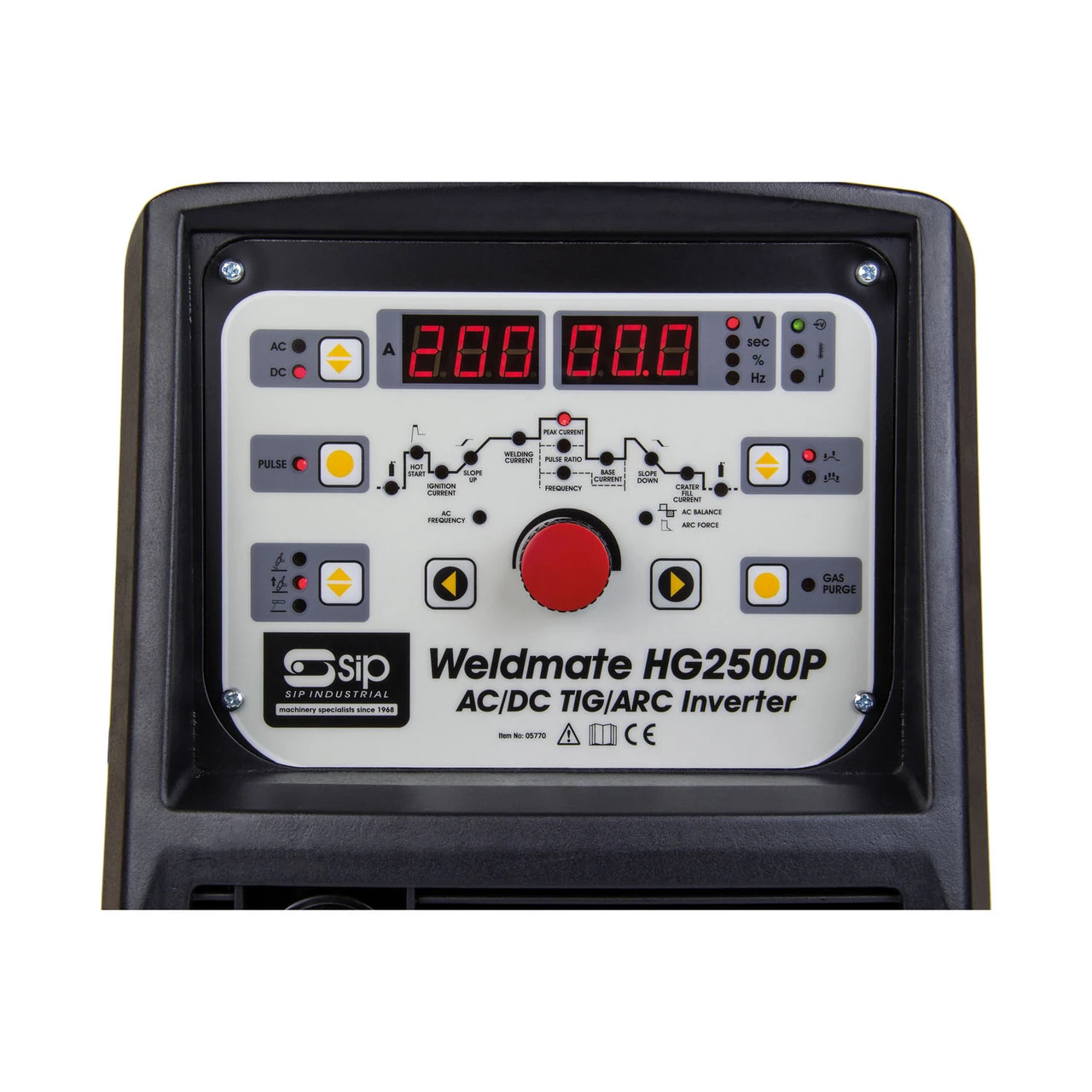

• 9-stage parameter adjustment including slope-up, slope-down, pre/post flow, AC balance and more to customise the set-up dependent on task requirements
• Lightweight and compact design for easy portability in all applications
• Low current output which is ideal for welding thinner materials
• Optional foot pedal for hands-free welding sold separately
• SIP 2-Year Standard Silver Warranty

Technical Specification

• ITEM NO. 05770
• Input Supply: 230v (16A)
• Output Current: 10A – 200A (TIG AC) / 5A – 200A (TIG DC) / 5A – 170A (ARC)
• Output Voltage: 10.4v – 18v (TIG AC) / 10.2v – 18v (TIG DC) / 20.2v – 26.8v (ARC)
• Duty Cycle: 200A @ 60% (TIG) / 130A @ 60% (ARC)
• Electrode Diameter: Ø 1.6mm – 4mm
• Protection Level: IP21S
• Insulation Class: Class H
