SIP – B3800/3M/200 Silenced Comp 230v

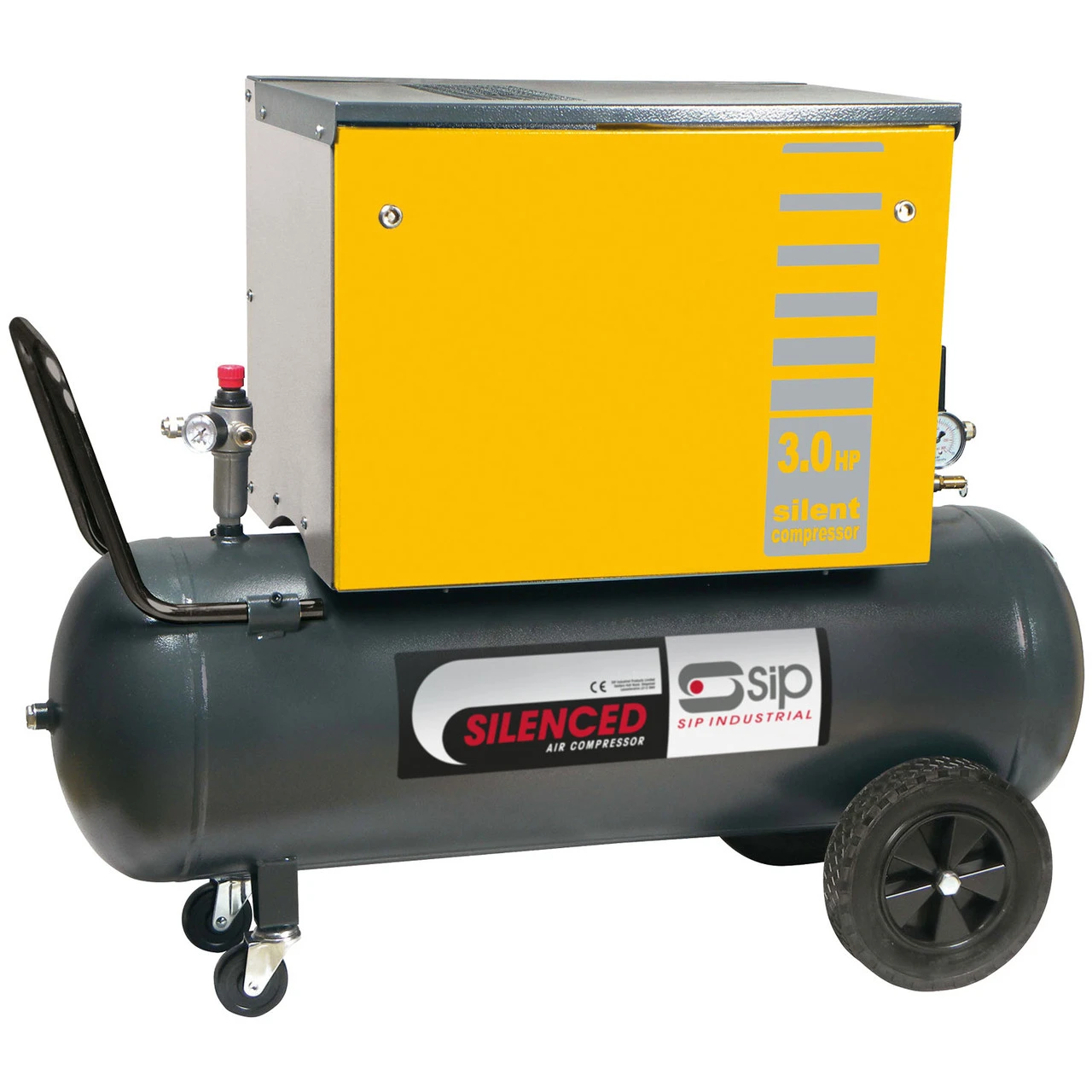

The SIP PB3800/3M/200 200ltr Silenced Piston Compressor is a powerful silenced piston compressor designed to provide reliable performance and long-lasting durability at a fraction of the operating noise offered by other compressor types. This is achieved via low-noise belt-driven operation and soundproof cabinet with air intake silencer.

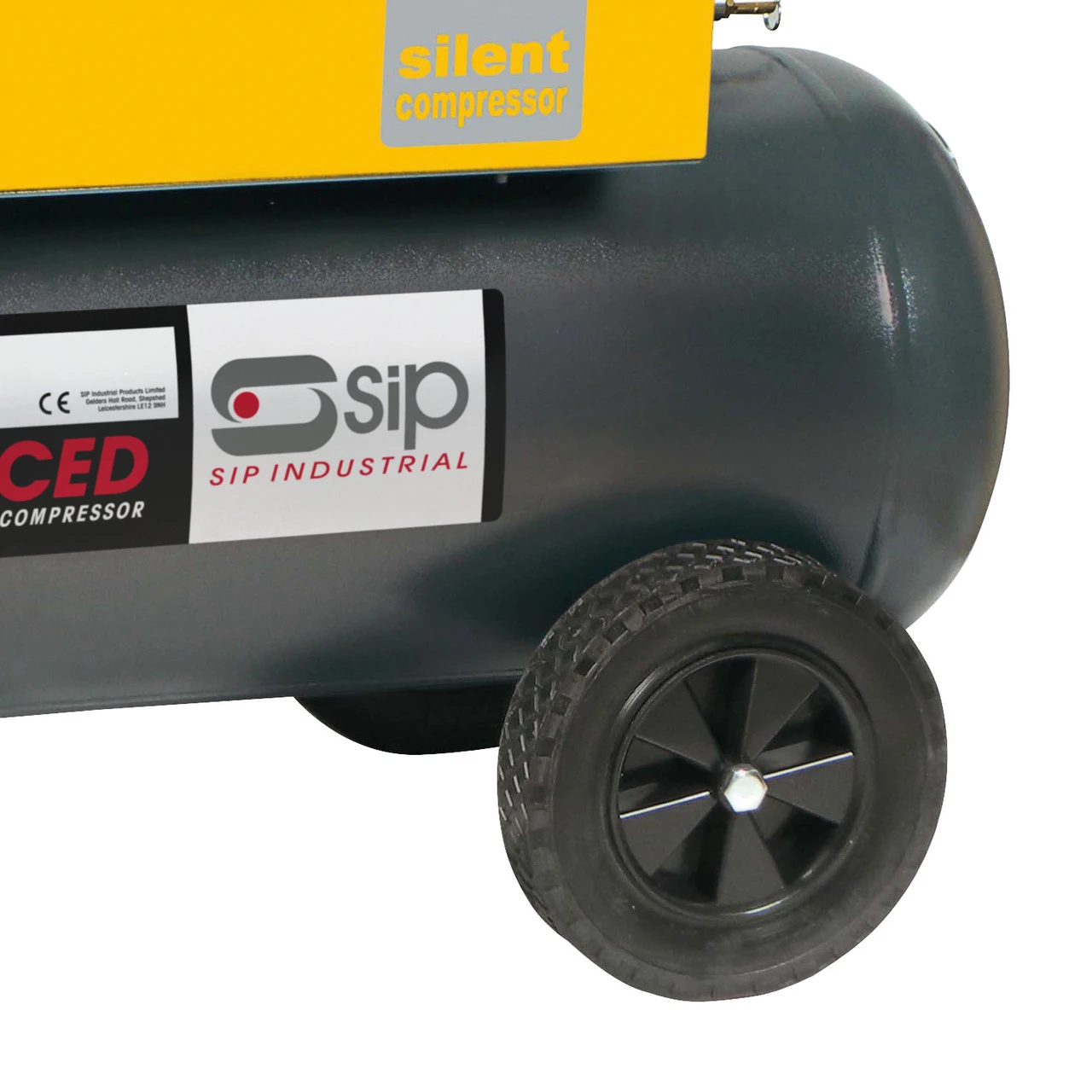

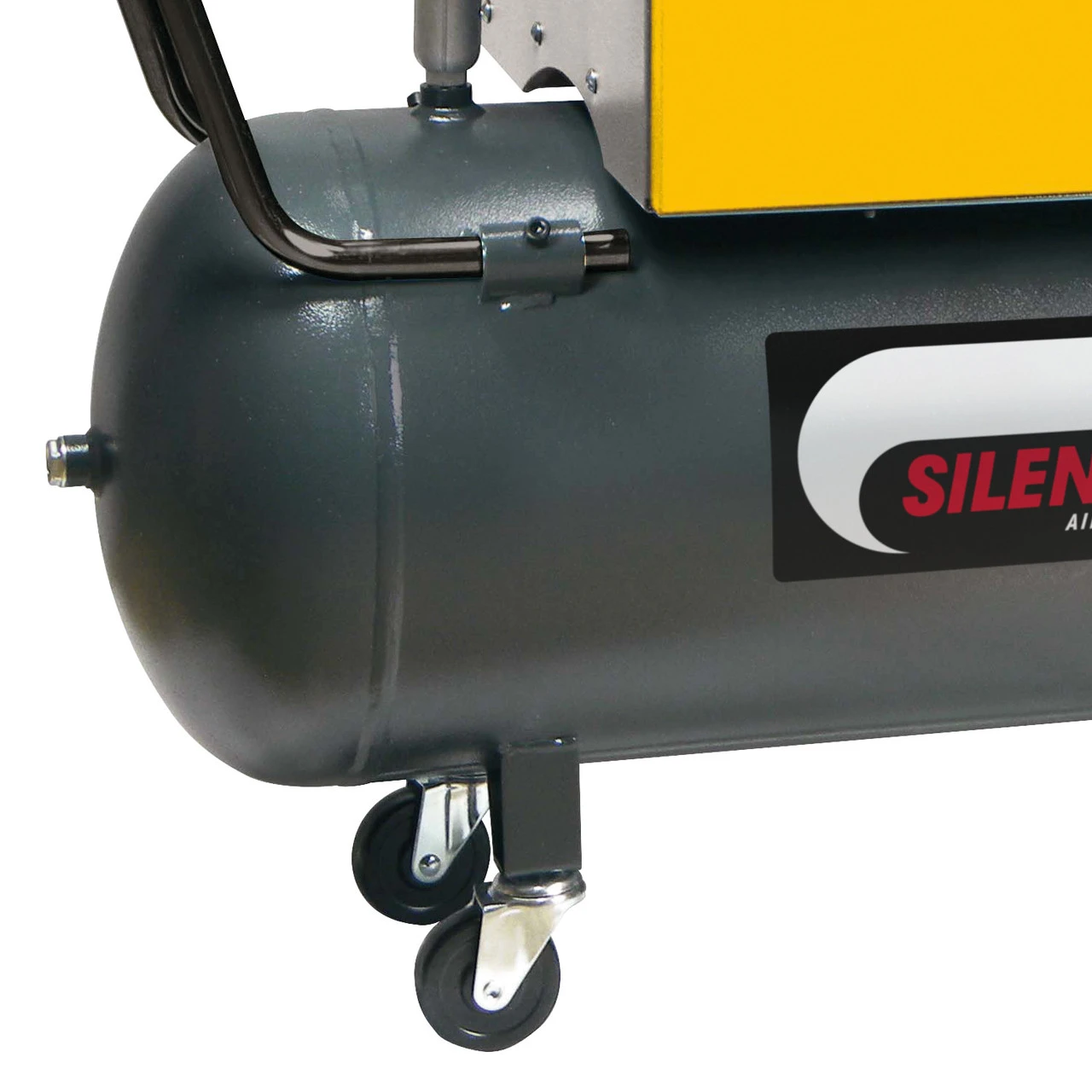

A wheel-mounted design ensures the PB3800/3M/200 is an excellent addition to any workshop requiring mobility or positioning near the workspace.

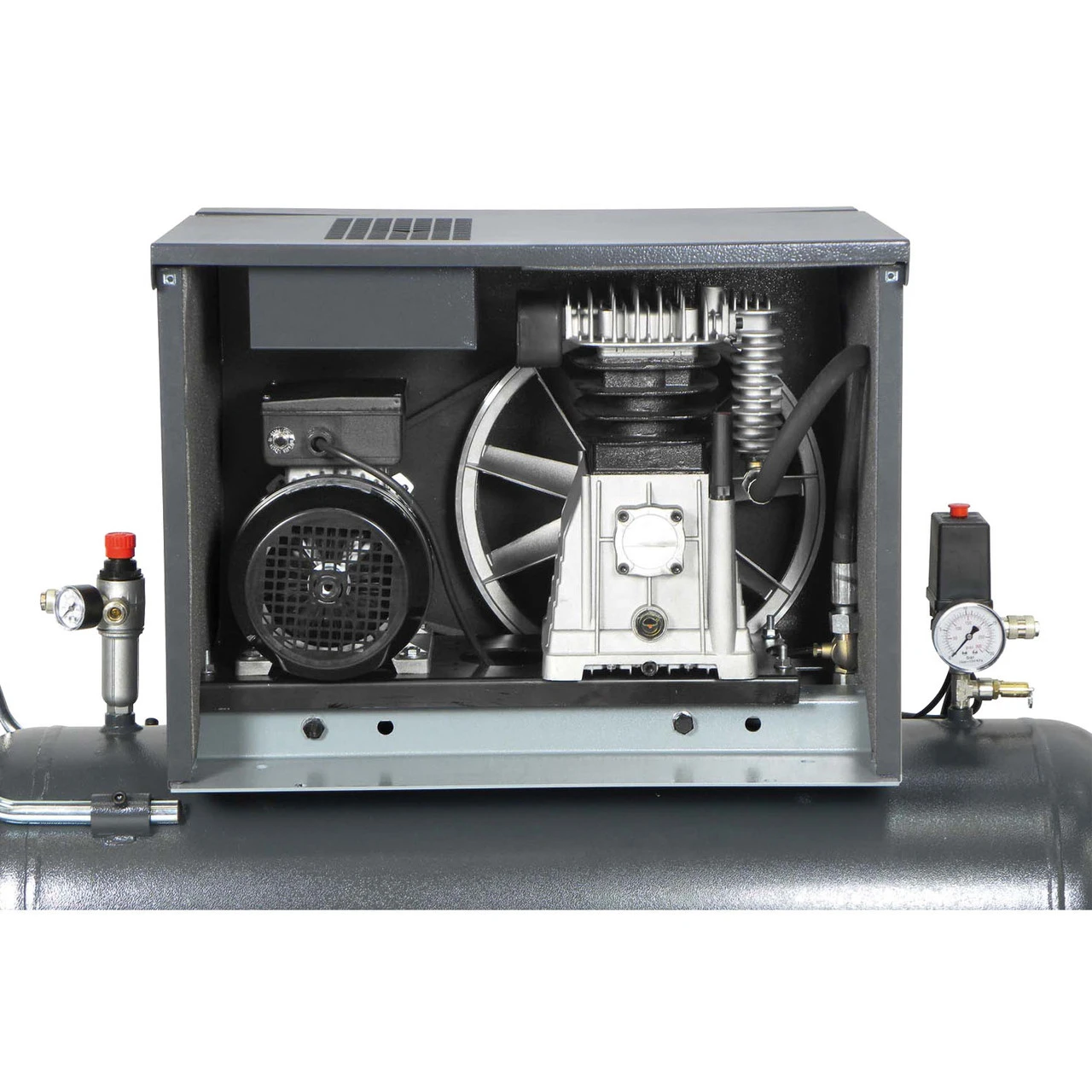

An integrated quick access panel ensures that servicing and maintenance is easy.

• Belt-driven performance with low noise levels perfect for close installation
• Soundproof cabinet enclosure with built-in air intake silencer
• Quick access panel for easy servicing and maintenance requirements
• Heavy-duty 2-stage pump for high efficiency and performance
• Compact and wheel-mounted design for easy movement
• Heavy-duty rubber-mounted saddle
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. 05202
• Input Supply: 230v (16A)
• Motor Power: 3hp (2.2kW)
• Receiver Size: 200ltr
• Piston Displacement: 14.00CFM (396ltr/min)
• Free Air Delivery (FAD): 9.50CFM (269ltr/min)
• Max. Air Pressure: 145psi (10bar)
• No. of Cylinders: 2 cylinders
• No. of Stages: 1 stage
• Noise Level: 69dB(A)
