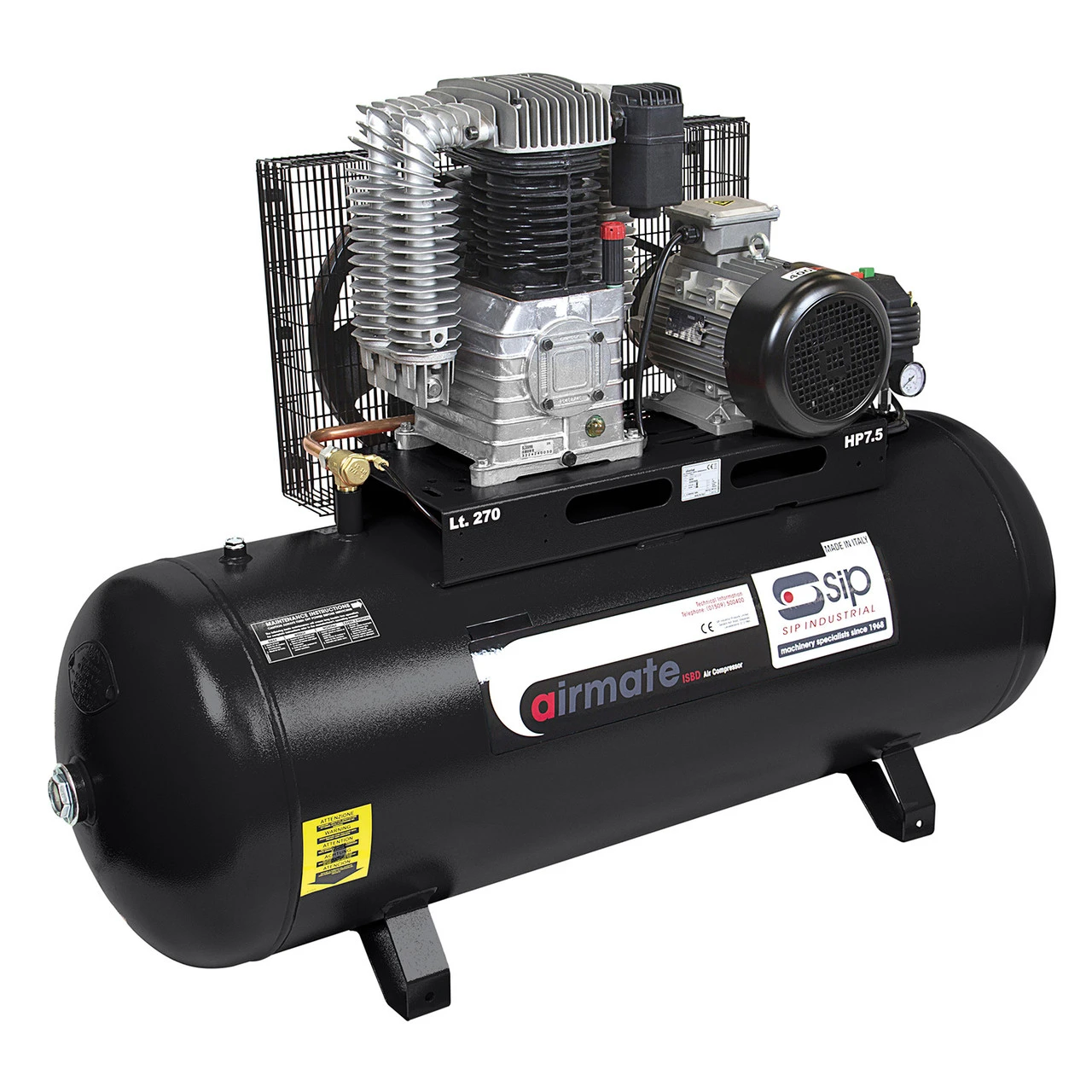

SIP 06291 Airmate ISBD7.5/270 Air Compressor

The SIP ISBD7.5/270 270ltr Industrial Electric Compressor is a powerful belt-driven workhorse compressor built for hard-wearing durability and designed for consistently high performance, plus superior compressed air production perfect for a range of demanding industrial applications.

Large interstage coolers provide high-quality, cooler air with reduced moisture and better pump temperature control. Meanwhile, an industrial-grade 3-phase motor ensures heavy-duty operation at all times, as do the long-stroke cast iron cylinders.

Each ISBD7.5/270 Industrial Electric Compressor comes with an SIP 10-Year Anti-Corrosion Receiver Warranty as standard for added peace-of-mind.

• Oil-lubricated belt-driven compressor with 400v 3-PHASE motor
• Heavy-duty pump ideal for prolonged and demanding industrial applications
• Large interstage coolers for high-quality, cooler air, reduced moisture and pump temperature control
• Long-stroke cast iron cylinders for slower running and increased pump life
• Robust valve plate with individual valves for efficient performance
• Supplied with heavy-duty anti-vibration mounts
• SIP 10-Year Anti-Corrosion Receiver Warranty
• SIP 2-Year Standard Silver Warranty
• Manufactured in Italy

Technical Specification

• ITEM NO. 06291
• Input Supply: 400v (20A) 3-PHASE
• Motor Power: 7.5hp (5.6kW)
• Receiver Size: 270ltr
• Piston Displacement: 31.00CFM (878ltr/min)
• Free Air Delivery (FAD): 20.50CFM (580ltr/min)
• Max. Air Pressure: 160psi (11bar)
• Working Speed: 1200rpm
• No. of Cylinders: 2 cylinders
• No. of Stages: 2 stages
